With 10 subsidiaries, Zhe Group is a comprehensive service provider of electronic technology and electronic products. It can provide customers with professional OEM/ODM services. The company's products and technologies are diversified, covering semiconductor devices, pulse motors, high-frequency transformers, inductors and PCBA & FPCA, the core components of various electronic products, focusing on aerospace, military industry, industrial control, data communication, automotive electronics, medical electronics, new energy technology and AI intelligent technology, the main market is at home and abroad, and the core customers are all over the United States, Japan, Germany and other domestic and foreign customers.

Let's take a look at the workshop site of Hehe Electronics PCBA!

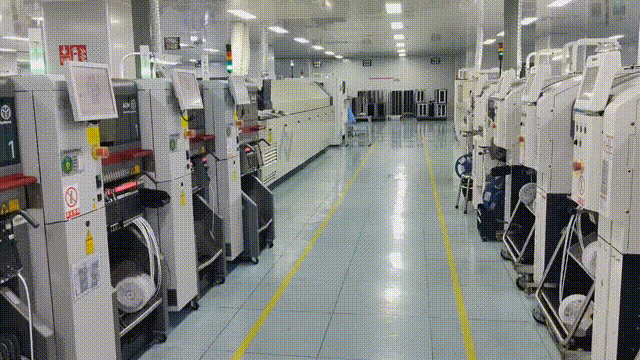

Completely closed clean, to achieve the 100000 level of dust purification, in order to maintain clean and dust requirements, into the area must be two times before the air shower. PCBA's production line, including 17 automated production lines, covers SMT patch production line, MI production line, back assembly, testing line, etc.

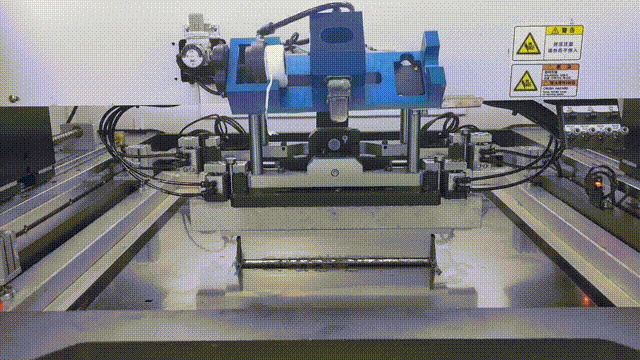

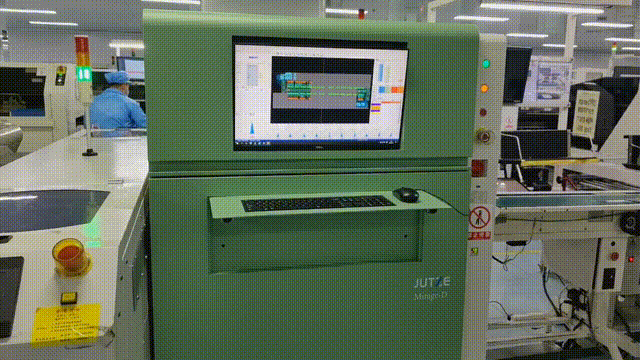

SMT production line is mainly imported equipment, mainly used for SMD integrated devices, SMD angle-type device mounting welding. The main equipment includes screen printing machine, solder paste thickness gauge (SPI), high-speed placement machine, multi-function placement machine, reflow soldering machine, online AOI machine, etc. From solder paste printing, solder paste detection to component mounting, welding and connection between processes, all fully automatic flow operation is realized, ensuring the production efficiency of circuit boards and the quality of finished products. The steel screen printing machine is composed of plates, solder paste, stamping, circuit board and other institutions. Its working principle is as follows: first, the printed circuit board is fixed on the printing positioning table, then the solder paste or red glue is leaked to the corresponding pad through the steel screen by the left and right scrapers of the printing machine, and the printed PCB with uniform leakage is input to the mounter through the transmission table for automatic patching. Solder paste thickness gauge is a device that uses laser non-contact three-dimensional scanning intensive sampling technology to measure the thickness, area and volume of solder paste printed on PCB board. The equipment is widely used in SMT production patch field, is an important measurement equipment to control the quality of solder paste printing.  The reflow soldering machine used in the electronic workshop is a full hot air reflow soldering machine. Reflow soldering process is a soldering technology developed with the emergence of miniaturized electronic products, which is mainly used in the soldering of various surface assembly components. The principle of reflow soldering is as follows: in advance, a proper amount of solder paste is coated on the pad of the circuit board in an appropriate shape, and then the SMT components are pasted on the corresponding position; The solder paste has a certain viscosity, which can fix the components on the PCB board. Then the circuit board with the components mounted is sent to the reflow soldering equipment. The transmission system drives the circuit board through each set temperature area in the equipment. The solder paste is dried, preheated, melted, wetted and cooled to solder the components to the printed board. The core link is to use an external heat source to heat, melt, flow and soak the solder to complete the soldering process of the circuit board. The Aisha reflow soldering machine used in the electronic workshop is imported from Germany. The temperature zone 14 is controlled separately, and the temperature control error can be controlled within 0.2 ℃, thus ensuring the quality of board processing. In recent years, with the spirit of independent innovation, he has continuously deepened the ODM business, opened up the new energy vehicle market, provided strong technical support for the development of the industry with strong innovation ability, and provided professional services and excellent products for the industry with solid patent technology strength. At present, the group has more than 70 software and hardware development engineers and 86 patents. It has passed the certification of ISO9001, ISO14001, IATF16949, ISO13485 and intellectual property implementation system, and has won the honors of high-tech enterprise, Fujian science and technology giant leading enterprise, Xiamen specialized and special new enterprise, tax star enterprise, etc.
